1、 Technical specifications
Channel support:
Digital Channel: Supports up to 32 digital input channels and up to 32 digital output channels, each channel can be individually programmed to meet specific application requirements.
Analog Channel: Supports up to 16 analog input channels and up to 8 analog output channels. The range of analog signals can be -10VDC to+10VDC, 0-20mA, or 4-20mA.
Signal processing capability: This module can simultaneously process multiple signal types to meet complex control requirements.
Working environment: Designed to operate in harsh industrial environments, with a wide range of working temperatures and a sturdy structure that can withstand impacts and vibrations.
Programming and Communication:
Programming language: GE’s proprietary programming language control language (C language) can be used for programming.
Communication Protocol: Supports various communication protocols, including Ethernet and Modbus TCP/IP, for easy integration with other components of the Mark VIe control system.
2、 Functional characteristics
Built in diagnostic and self-test functions: can monitor the working status of modules in real-time and detect any potential faults or errors, helping to reduce downtime, improve production efficiency, and ensure system reliability.
High adaptability: This module has a wide working temperature range and a sturdy structure, which can adapt to various harsh industrial environments, ensuring the continuity and reliability of industrial processes.
Flexibility: Each channel can be programmed separately to meet the specific requirements of different applications, improving the flexibility and applicability of the module.
3、 Application scenarios
Process control system: can be used to receive and process input signals from sensors, switches, buttons, and other devices, convert them into digital or analog data, and transmit them to the control system to achieve monitoring and control of industrial processes.
Automated production line: In an automated production line, this module can be used to receive and process input signals from various sensors and equipment, monitor the status and parameters of the production line, and trigger corresponding control operations to ensure the stability and efficiency of the production process.
Machine control system: can be applied in machine control systems to receive and analyze input signals from machine equipment, monitor the operation status of the machine and sensor feedback, and control the motion, speed, and other operating parameters of the machine.
Data acquisition and monitoring system: This module can be used in data acquisition and monitoring systems to receive input signals from various sensors and devices, and convert them into digital data for recording and analysis, which helps to monitor and diagnose the operational status of industrial processes in real time.

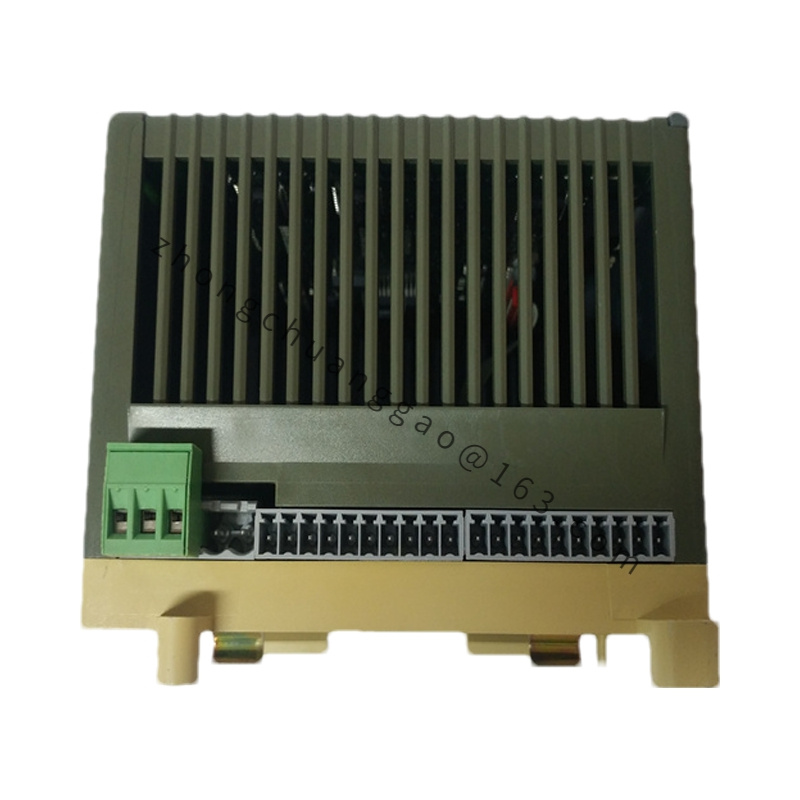

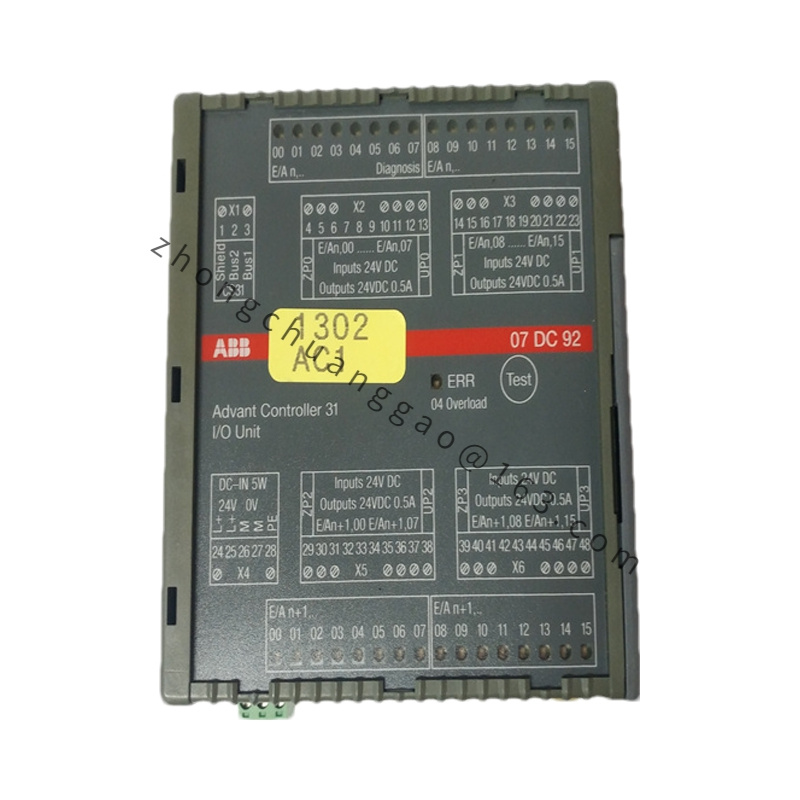

In summary, ABB 07DC92D GJR5252200R0101 is a powerful and widely adaptable industrial I/O module with multi-channel support, built-in diagnostic and self-test functions, high adaptability and flexibility, suitable for various industrial application scenarios, providing precise and reliable control and monitoring functions for industrial processes.
