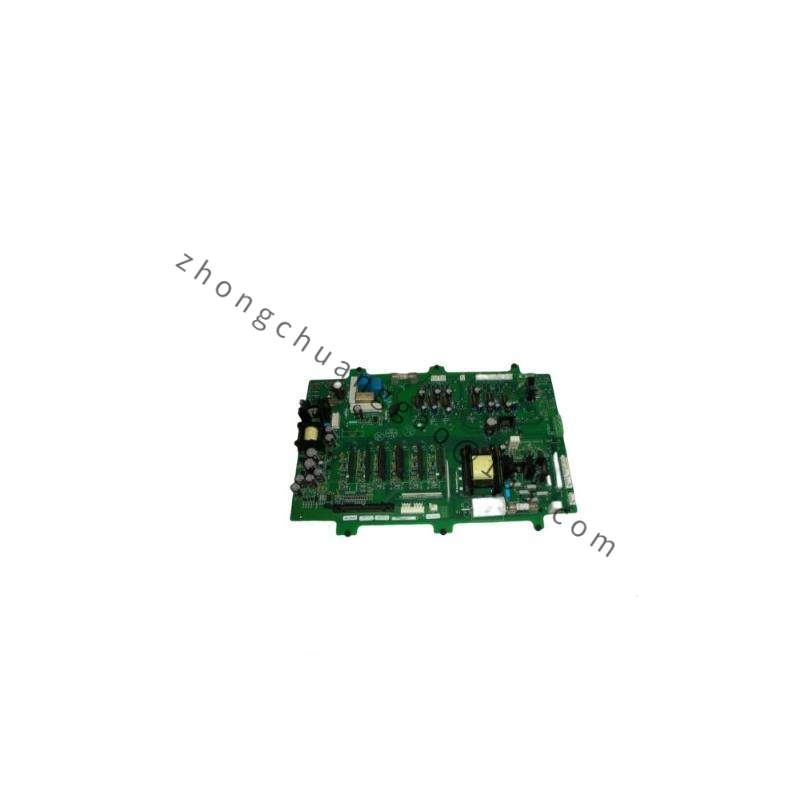

Type:PCB Gate Drive Board

Model Number:1336-BDB-SP18D

Power Rating:Up to 1800W

Operating Voltage:12-30V DC

Operating Current:100A

Maximum Pulse Frequency:20kHz

Switching Technology:MOSFET-based

Input Signal Type:Digital or Analog

Environmental Temperature Range:-40°C to +85°C

Dimensions (LxW):150mm x 100mm

Mounting Type:Panel Mount

Certifications:UL, CE, RoHS

    This advanced PCB module from AB Electronics is meticulously engineered to deliver exceptional performance in gate drive applications. It is equipped with state-of-the-art components to ensure high efficiency and reliability under various industrial conditions.

    Featuring a wide operating voltage range, this module is suitable for a broad spectrum of industrial control systems. Its robust design withstands harsh environments, making it an ideal choice for applications requiring extreme durability.

    The AB 1336-BDB-SP18D is capable of handling high currents efficiently, providing a reliable power boost for motors and other electrical devices. Its switching frequency can be adjusted to optimize performance according to specific application requirements.

    Withstanding temperatures from -40°C to +85°C, this PCB module ensures continuous operation across diverse geographic locations and climates. Its insulation resistance ensures safe and efficient power transfer, minimizing the risk of electrical faults.

    Equipped with digital input/output signals, this module simplifies integration into existing control systems. It supports seamless communication and control, enhancing system performance and reducing setup time.

    Backed by AB Electronics’ commitment to quality and customer satisfaction, this PCB module comes with comprehensive technical support and a warranty, ensuring peace of mind for users.
