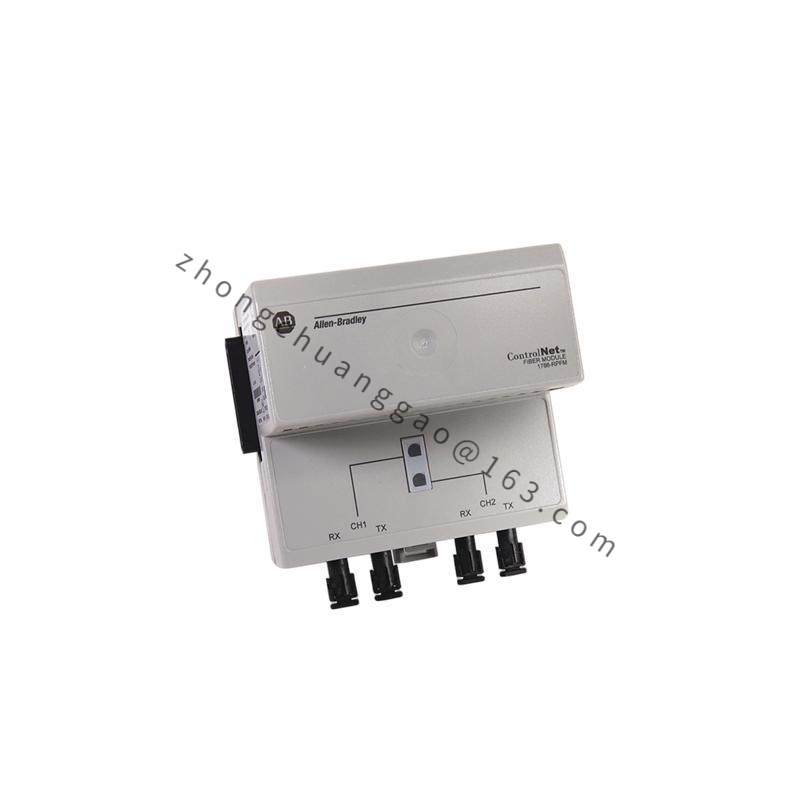

AB 1786-RPFM Dual Fiber Optic Channel, Allen-Bradley, ControlNet, Industrial Networking

The AB 1786-RPFM Dual Fiber Optic Channel is a high-performance, industrial-grade repeater designed for seamless ControlNet communication over long distances, ensuring reliable data transmission in challenging industrial environments.

Detailed content

Type:Ring Repeater

Network Protocol:ControlNet

Optical Channels:Dual Fiber Optic

Mounting:DIN Rail

Distance Capacity:Up to 3000 meters

Fiber Type:Multimode (62.5 / 125 μm)

    The Allen-Bradley 1786-RPFM Dual Fiber Optic Channel Repeater is specifically engineered to optimize industrial network performance over long distances. Its dual-channel capability allows for efficient data transmission, ensuring minimal latency and high reliability, crucial for complex manufacturing environments.

    This repeater operates on the ControlNet protocol, seamlessly integrating into existing ControlNet networks without requiring extensive reconfiguration. It supports up to 3000 meters of transmission distance, making it ideal for expansive factory layouts or remote locations.

    Equipped with high-quality fiber optic technology, the 1786-RPFM ensures robust signal integrity even under harsh industrial conditions. Its compatibility with 62.5 / 125 um multimode fibers allows for versatile deployment scenarios, from small to large-scale installations.

    The unit is designed for DIN rail mounting, facilitating quick and secure installation within standard industrial cabinets. While specific dimensions and weight are not provided, the compact design ensures minimal space requirements and easy integration into existing infrastructure.

    For optimal performance, users must provide their own power supply. Detailed specifications regarding power requirements are available in the manufacturer’s documentation. It’s important to note that compliance with industry standards is essential for safe and effective operation, ensuring seamless integration with other Allen-Bradley products and third-party systems.

AB 1786-RPFM DUAL FIBER OPTIC CHANNEL
