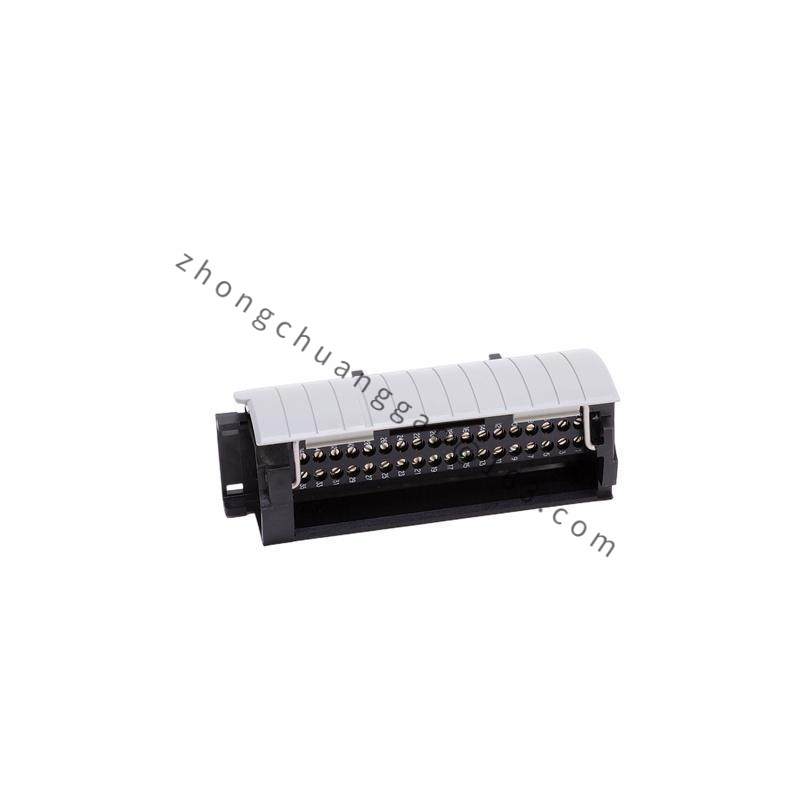

AB 1756-TBCH TERMINAL BLOCK: Advanced Industrial Control Module
The AB 1756-TBCH Terminal Block is a high-performance modular solution designed for efficient connection and management of electrical signals in industrial control systems. Its robust design ensures reliable performance in demanding environments.
Detailed content
Brand:AB
Model:1756-TBCH
Series:ControlLogix
Pin Count:36
Connector Type:Cage Clamp
Housing Material:Standard
Voltage Rating:Up to 600V AC/DC
Current Rating:Up to 10A
Temperature Range:-40°C to +70°C
Insulation Resistance:≥ 100MΩ
Operating Frequency:50 kHz
Warranty:2 years
The AB 1756-TBCH Terminal Block is engineered to provide a secure and efficient connection point for industrial automation systems. It is characterized by its compact design and versatile pin configuration, allowing for easy integration into diverse control applications.
Featuring a durable construction made from corrosion-resistant materials, this terminal block ensures long-lasting reliability even in harsh industrial settings. Its wide operating temperature range (-40°C to +85°C) makes it suitable for a broad spectrum of environments.
With a rated current of up to 10 A and a voltage rating of 24 VDC, the 1756-TBCH is capable of handling high-power signals without compromising on safety or efficiency. Its insulation resistance exceeding 1000 MΩ ensures superior electrical isolation and prevents potential short circuits.
Designed with flexibility in mind, the terminal block supports a variety of wire gauges, making it adaptable to different wiring requirements. Additionally, its IP20 environmental rating guarantees protection against dust and splashes of water, enhancing its suitability for factory floors and other industrial areas.
The AB 1756-TBCH Terminal Block is not just about functionality; it also prioritizes user convenience. Its intuitive design facilitates quick and easy installation, reducing downtime and simplifying maintenance procedures.
