Model Type:SLC500

Model Number:1746-NO4V

Manufacturer:Allen Bradley

Number Of Channels:4

Input Voltage Range:-20 to 20 V

Absolute Input Voltage:+/- 7.5 VDC or 7.5 VAC RMS (Maximum)

Input Range:-20 to 20 mA

Absolute Input Current:-30 to 30 mA (Maximum)

Output Range:-10 to 10 V – 1 LSB

Full Scale Output:10 VDC

Voltage Rating:Overvoltage Protection: 7.5 VAC RMS

Current Rating:Backplane Current Draw: 55 mA

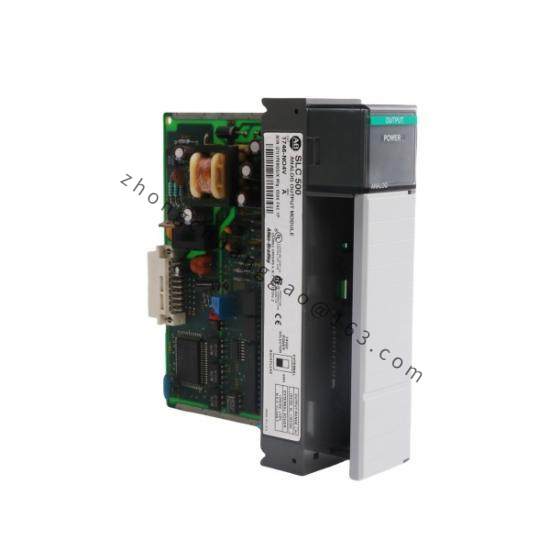

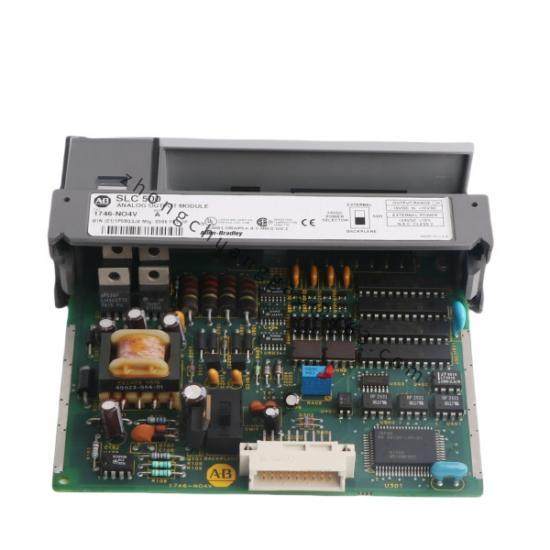

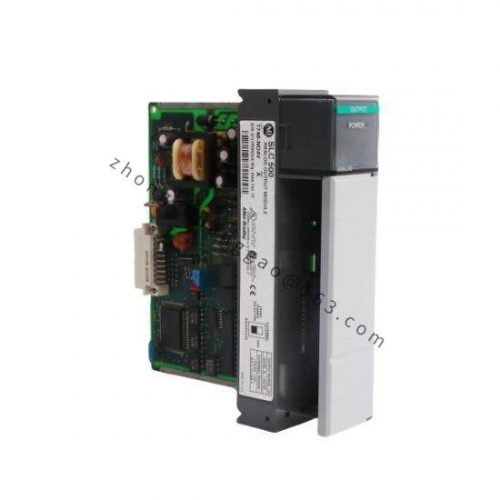

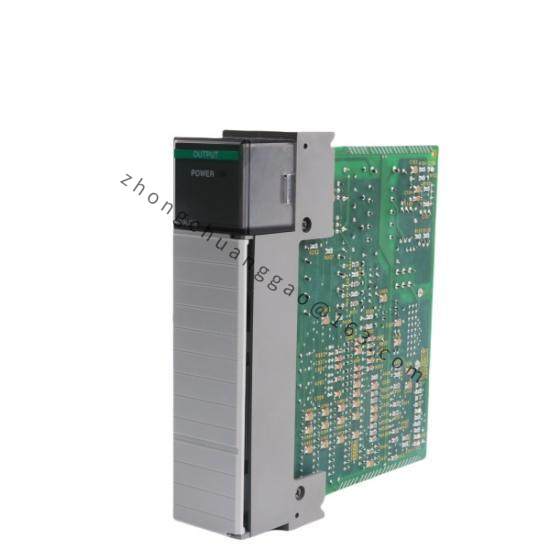

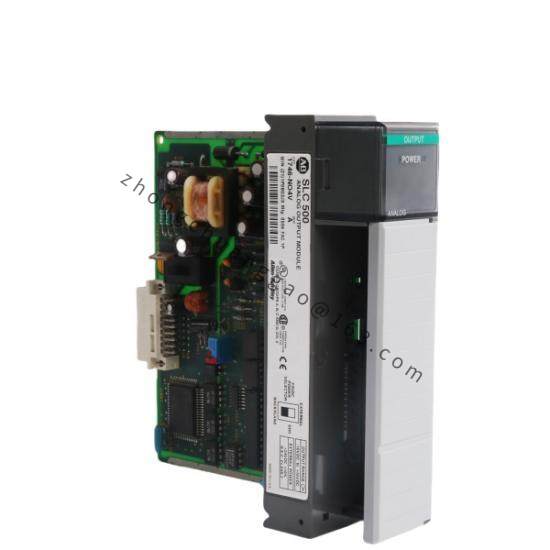

    The AB 1746-NO4V Analog Output Module is designed to provide high-resolution control over four channels of analog signals. With its robust design and precise specifications, this module ensures reliable performance in industrial automation environments. Its ability to handle a wide range of input voltages and currents makes it versatile for various applications, including process control, instrumentation, and data acquisition systems.

    Crafted with precision engineering, the AB 1746-NO4V offers excellent accuracy and stability, minimizing errors and ensuring consistent operation. The module’s high-resolution capabilities allow for fine-tuned control, making it an essential component for demanding industrial processes.

    Designed for easy integration, the AB 1746-NO4V can be seamlessly connected to Allen Bradley’s SLC500 series controllers, providing a comprehensive solution for your automation needs. The backplane current draw of 55 mA ensures efficient power usage without compromising on performance.

    This module is built to withstand harsh industrial conditions, featuring robust construction materials and a compact design that fits seamlessly into existing control systems. Whether you’re managing complex manufacturing processes or simple automation tasks, the AB 1746-NO4V delivers the precision and reliability you need.

    With its combination of precision engineering, reliable performance, and ease of integration, the AB 1746-NO4V Analog Output Module is a must-have for any industrial automation setup.
