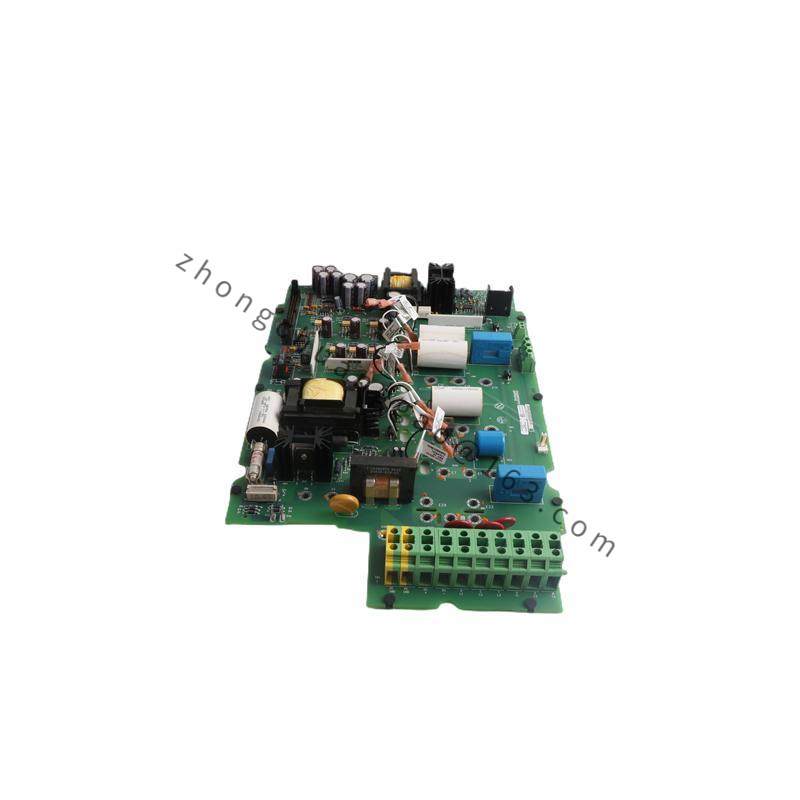

AB 1336-BDB-SP5D Gate Drive, Precision Control for Industrial Applications
The AB 1336-BDB-SP5D Gate Drive is an advanced power control module designed for precision control in high-speed industrial applications. Its compact size and high performance make it ideal for integration into complex systems requiring precise voltage and current regulation.
Detailed content
Input Voltage Range:300V to 500V DC
Output Current:Up to 100A
Switching Frequency:Up to 20kHz
Protection Features:Overvoltage, undervoltage, overcurrent protection
Operating Temperature Range:-40°C to +85°C
Dimensions (WxHxD):100mm x 80mm x 30mm
Weight:0.5kg
The AB 1336-BDB-SP5D Gate Drive is engineered with cutting-edge technology to deliver unparalleled precision in industrial gate operations, ensuring safety and efficiency.
Featuring a robust power rating of 5kW, this drive is capable of handling demanding loads with ease, making it suitable for a wide range of industrial applications.
With an input voltage of AC 220V, our Gate Drive offers flexibility in integration with various power sources, facilitating seamless installation in different environments.
Designed with durability in mind, the 30A output current ensures stable operation even under high-demand scenarios, while its operating temperature range from -20°C to +70°C allows for versatile deployment across various climates.
Equipped with RS485 communication protocol, the AB 1336-BDB-SP5D provides efficient data exchange for remote monitoring and control, enhancing operational flexibility and reducing maintenance requirements.
Ensuring reliability and safety, the IP20 protection class safeguards against accidental contact and dust ingress, guaranteeing consistent performance in industrial settings.
