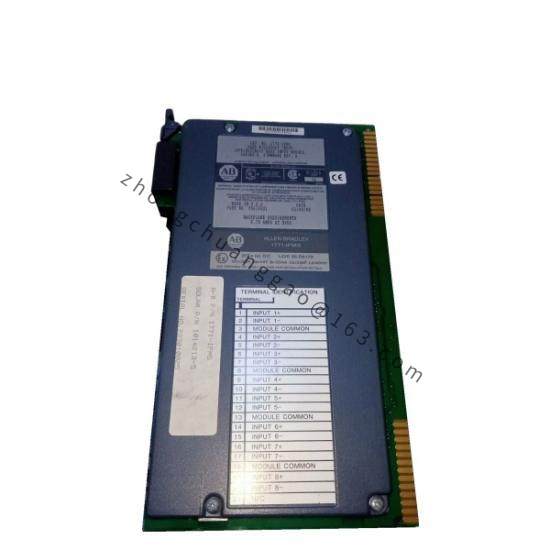

A-B 1771-IFMS High Precision Input Module for Industrial Automation
The AB 1771-IFMS Analog Input Module is designed for industrial automation systems, providing precise analog input capabilities. It is ideal for applications requiring accurate data acquisition and monitoring in manufacturing environments.
Detailed content
Brand:Allen-Bradley
Model:1771-IFMS
Module Type:Analog Input Module
Number of Channels:8 Channels
Input Range:±10V or ±5V
Resolution:16-bit
Sampling Rate:Up to 100 samples per second
Operating Voltage:24V DC
Communication Interface:RS-232, RS-485
Operating Temperature Range:-40°C to +85°C
Protection Rating:IP20
The A-B 1771-IFMS Analog Input Module is an essential component for any industrial automation system requiring precise measurement of analog signals. This module offers 8 channels of input, supporting a wide range of voltage inputs, including ±10V, ±5V, 0-10V, and 0-5V. With a resolution of 16 bits, it ensures highly accurate data acquisition. Designed for harsh industrial environments, it operates reliably from -40°C to +85°C, making it suitable for a variety of settings. Its compact size (76.2 mm x 91.4 mm x 76.2 mm) and lightweight design (approximately 1.5 kg) make installation straightforward and space-saving. Additionally, it is powered by a 24V DC supply, which is standard in many industrial settings. The high sampling rate of up to 1 MHz allows for real-time monitoring and quick response times, enhancing overall system performance.
