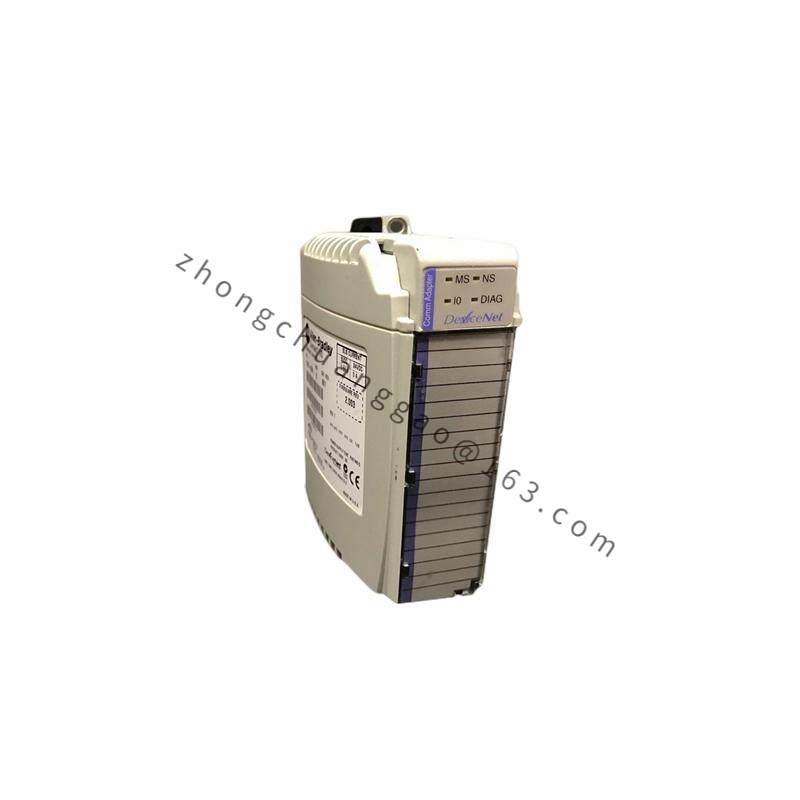

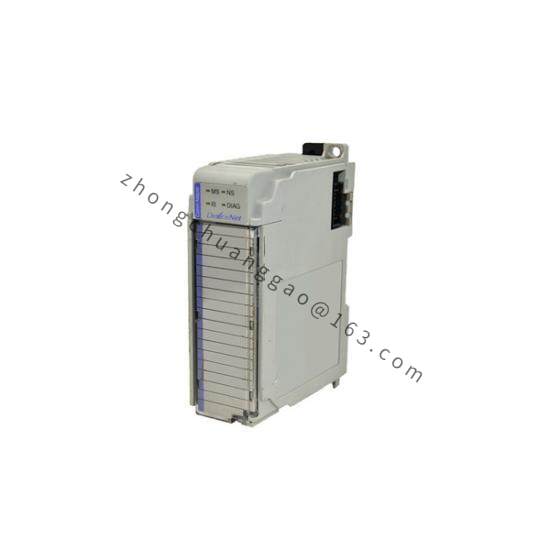

A-B 1769-ADN Digital Input Module for Allen-Bradley ControlLogix Systems
The Allen-Bradley 1769-ADN Analog Input Module is designed for industrial automation systems, offering precise analog signal processing capabilities. It is ideal for applications requiring accurate data acquisition and control in manufacturing environments.
Detailed content
Brand:A-B
Model:1769-ADN
Module Type:Analog Input Module
Input Channels:8
Input Type:Voltage and Current
Voltage Range:±10V
Current Range:±20mA
Resolution:16-bit
Sampling Rate:Up to 100 Hz
Power Supply:24V DC
Operating Temperature Range:-40°C to +85°C
Protection Rating:IP20
The A-B 1769-ADN Analog Input Module is designed for high-performance industrial automation systems, offering robust and accurate data acquisition capabilities. It supports both voltage and current inputs with a wide range of ±10V and ±20mA respectively, ensuring precise measurements in various environments. With a resolution of 16-bit, this module delivers highly accurate readings. It features a sampling rate of up to 100 Hz, enabling fast and reliable data collection. The module operates on a stable 24V DC power supply, ensuring consistent performance even in challenging industrial settings. Designed with an operating temperature range from -40°C to +85°C, it can withstand extreme conditions without compromising functionality. Its protection rating of IP20 ensures it is suitable for use in environments where dust and water are not major concerns, providing a reliable solution for industrial applications.
