Brand:A-B

Model:1746-IV16

Module Type:Digital DC Input Module

Number of Channels:16

Input Voltage Range:10 – 30 VDC

Off-State Input Voltage:3 VDC

Nominal Current:8 mA at 24 VDC

Off-State Current:1 mA

Isolation:Communication Circuits: 500 VDC, Backplane: 1500 VAC

Processor Compatibility:SLC 500

Enclosure:Open Type

Mounting:Chassis

Temperature Rating:0 – 60 °C

Humidity Range:5 – 95% Non-Condensing Relative Humidity

Shock Resistance:30 G

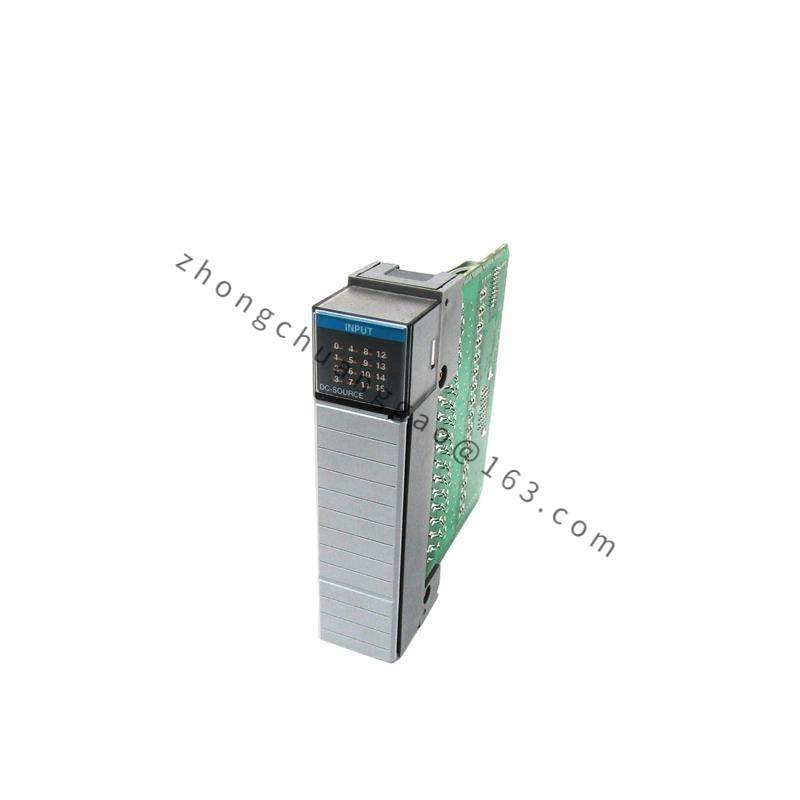

    The AB 1746-IV16 DC Input Module is designed specifically for industrial automation environments, offering robust performance and reliability. It supports 16 channels of digital inputs with a voltage range from 10 to 30 VDC, ensuring accurate and stable signal transmission. The module is equipped with a nominal current of 8 mA at 24 VDC and an off-state current of 1 mA, providing reliable operation under varying conditions. With a high isolation rating of 500 VDC for communication circuits and 1500 VAC for backplane connections, this module ensures safe and efficient operation. It operates within a temperature range of 0 – 60 DEG C and can withstand environmental conditions with humidity levels ranging from 5% to 95% non-condensing. The open-type enclosure and chassis mounting design make it easy to integrate into existing systems. Designed with stringent quality standards, the AB 1746-IV16 DC Input Module offers unparalleled performance and durability for any industrial application.
